Driver Machine Interface
Driver Machine Interface

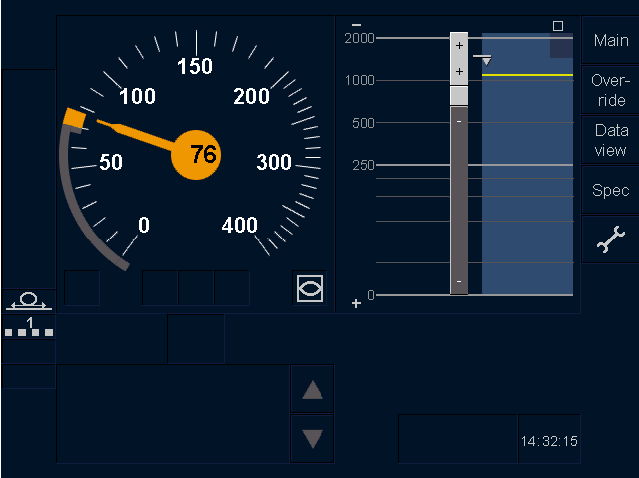

Sydac is an Adelaide based company producing train driver simulators and similar solutions for other fields. These simulators consist of several components, written in C++ and Java. I designed and implemented a so called driver machine interface using Java Swing, Apache Batik, SVG, a proprietary communication framework (JNI) and Hibernate for Rail Corporation NSW. Further tasks concerned the development of a wrapper around the communication framework to simplify its use and the development of a management console (Swing, Batik, Hibernate) for the DMI.

Technologies used:
  • Enterprise Architect, UML
  • Java 1.5
  • Apache Batik and SVG
  • Apache Ant
  • SVN
  • XML
  • Hibernate
  • Comms
View the movie to see it in action:
Screen Capture of the DMI while doing a drive (25 MB swf)
